After the initial exchange with the interior designers at Darrell Schmitt Design Associates back in the beginning of 2011, this backlit onyx dining table has slowly and steadily come to fruition.  GPI Design was originally intended to just provide the material for a backlit onyx tabletop for a private residence in the Middle East.  Four panels cut to size, a small undertaking for the large volumes we're used to.

Sounds pretty simple, huh?  Not so fast.  No contractor or millworker was willing to take on the task of creating the entire table structure, due to the weight and fragility of the onyx panels.  So we stepped up to the plate and decided that WE would make the entire table.  That meant a whole lot of attention to detail, intense engineering calculations, and custom fabricated metalwork; we were pumped up for the challenge.

This video outlines the process of design, fabrication, engineering, and assembly that has occurred over the past year.  We are proud of the finished result, particularly how smoothly the rendering translated to the final product.  As usual, we obsessed over the details, spent hours coordinating and integrating the elements, and became quite attached to this work of art.  The table is currently packed up and on its way to the Middle East for final installation in the dining room of the residence.

Some cool facts about the table:

• The table is over 15 feet in length
• The table top weighs nearly 2,000 lbs
• The edge profile is only 2" thick
• The designer selected the honey onyx stone completely custom - no 2 pieces are the same
• The stone is opened up like a book, with pattern lines reflected across joints
• The table is tied back to a central lighting control system so the lighting settings can change scenes
• What you don't see: wiring, metal plates, attachments, fasteners, clips, structural reinforcements
• At the beginning stages of stone and lighting design, the lighting designer flew in from LA to view half of the table top in mock-up format
• Fallon and Caitlin nearly had panic attacks every time the stone was moved

Bon voyage to our dear table, we'll see you on the other side of the pond!

As the counterpoint to our blog post “5 Reasons For Designers To Love Faux Stone Panels”, today we take on the alternate perspective and illustrate the benefits of natural stone panels. Given that this succeeding post quickly catapulted to twelve points, which I narrowed to six here, it’s pretty clear which material we regard as a superior architectural solution.

Here are the criteria which make glass-backed natural stone panels a superior architectural solution:

1. Backlighting and optical clarity

When backlighting panels for feature areas, natural translucent stone panels take on a sparkling appearance that is a result of the crystalline graining that formed in the stone over thousands (or millions) of years. With glass-backed exotic stones, such as onyx, the stone layer can be thinned from 1 mm to 12 mm, allowing much light but still retaining the visual effect of naturally layered depth. Most man-made faux stone panels tend to lack natural depth, appearing flat and dull when illuminated with a backlighting source.

2. Large Panel Sizes

If you’re designing for a large scale installation or simply want to minimize joints, natural stone panels can be sourced in very large sizes. It depends on the variety of stone, but we’ve utilized exotic onyx and marble panels up to 5’ x 10’. Acrylic or poured resin stone panels tend to be limited to standard sheet sizes. Even if the man-made products are thickened to increase rigidity and yield a larger panel, the additional surface thickness interferes with light transmission. With glass-backed natural stone surfaces, larger panels are created by simply increasing the thickness of the glass backing, preserving the translucency of the stone layer at only millimeters thin.

3. Natural Variation

Acrylic and resin stone panels are standardized into existing collections, offering limited selections of coloration and patterning. Each panel has the same patterning, yielding repetitive images. By using natural stone panels, visual characteristics vary within the slab itself and across the larger scale, creating unique fluctuation within installations. Natural veins and movement are reflected as dynamic bookmatched images across panel joints.

4. Longevity

Natural stone is classic, elegant, and distinct. For quality design features that withstand time, natural stone panels open up the most possibilities in creating enduring spatial elements. Onyx panels sustain their quality, with no evidence of surface degradation over time and very little maintenance required.

5. Exterior use

To our knowledge, there are no translucent faux stone materials that are rated for exterior applications. Glass-backed natural stone can be used in exterior curtainwall applications and as part of insulated glazing units. This only holds true for high quality fabricators with thorough testing, so use discrimination when selecting a source for exterior panels.

6. Uniqueness

Real stone is a product of Mother Nature, and each slab for each project is unique unto itself. Your client becomes the proud owner of a truly unique work of art.

--> I’d like to thank @whysideas for engaging in an interesting Twitter conversation in reaction to our first blog post. There’s something to be said for authenticity in architecture. Cheap materials and quick solutions show a sort of short-sightedness on the architect’s part, and if you’re not careful, technological capabilities can distort the appropriate contextual solution for a project. As @whysideas stated, “technological advances are so important but should give physicality to the architect’s imagination, not dictate it”. Our advice? Have some patience to allow your designs to unfold, and dedicate your time to implementing high quality materials that meet their intended use and will enhance the image of your space.

Ouch. I feel like I’m backstabbing my trusted old friend, the natural stone panel. Lately we’ve seen a surge of interest in faux stone products, particularly for backlighting applications, and have found ourselves recommending these products for certain instances. There are some high-quality acrylics, poured resins, and co-polyester materials that have made advancements in the last five years and become promising contenders to the natural stone panel.

You’ve specified an exotic natural onyx, the client has fallen in love with it, and now after budgeting exercises, you need value alternatives that still come close to the original design intent.  The inherent beauty of onyx panels instantly makes them the focal points of space, so it’s not always wise to cut the budget in these areas. There ARE certain instances in which man-made faux stone panels will maintain your design intent, meet the budget, and please the client, but decisions should be made with discrimination.

When is a man-made onyx material a decent architectural solution? Here is our criteria for selectively determining when to use man-made faux stone panels versus the real thing:

1. Complex Geometries

Let’s face it – even with the most advanced processes, natural stone panels just doesn’t like to be coerced into complex geometries (particularly bent and curved shapes). Man made stone materials offer real flexibility in creating thermoformed and custom shapes. In addition, mitered edges are easier to fabricate and control quality.

2. Overhead applications

In terms of offering dramatic weight reduction, faux stone panels offer real benefit to designers and greatly reduce structural requirements. Plus if the stone will be viewed from a distance and out of reach from physical contact, it’s likely that the occupants will never know the difference.

3. Cost

Based on our experience, faux stone panels are typically about 50% less expensive than traditional glass-backed natural stone.  The lightweight nature will reduce the amount of structural steel necessary to support the faux stone in a feature wall or ceiling application.

4. Control/ Predictability

Especially when you’re in a time crunch and looking for a quick material solution to add to your specs, mother nature doesn’t always provide natural stone material in the exact way you have envisioned it, packaged neatly for insertion into architectural drawing sets. For optimal control and predictability, man-made materials offer the advantage.

5. Time

This piggy-backs onto #4 above.  With an easier specification process, man-made translucent stone panels greatly simplify the decision-making process. Existing product collections set clear parameters on available surface styles and options. While the manufacturing lead times for faux and natural stone panels are roughly the same, the sampling and specification process for acrylic or resin stone panels is usually quicker.

--> Now of course, there’s always a distinct set of parameters in which materials are best suited, and I must do justice to GPI's long history in the natural stone industry.  So stay tuned for when we explore the advantages of using natural stone panels (which, if nothing else, will ease my guilt for writing this blog post!).

Expand your design palette with imaginative interior feature wall products. Stone, wood, and light are three basic elements of nature. Layer them into an integrated assembly, and the visual effect is stunning.

A sleek alternative to backlit onyx mosaics, these backlit stone and wood screen panels create extravagant patterns for an interior feature walls and ceilings.  Combining illumination, translucency and pattern, the layered panels illuminate without evidence of structural shadows or untidy grout joints.

Above: Flat-Lite™ LED Light Panel

Flat-Lite™ LED Light Panel + DURA-Lite™ Translucent Glass-Backed Stone

Custom laser cut wood screens (available in any custom pattern or lettering)

Flat-Lite™ + DURA-Lite™ + Custom Wood Screen

In an interplay between organic veins and geometric repetition, the wood screens frame the natural movement of the onyx. Backlit illumination increases the contrast between the surface materials, providing an intriguing focal point for commercial and hospitality spaces.

In studying our website metrics that indicate which keywords our visitors are searching for, it’s mind-boggling how many designers are searching for answers to detailing backlit panels. And while we love to stock our website full of useful information that makes it easy for busy designers to quickly understand and specify our systems, typical details can sometimes actually hurt the process.

When backlighting architectural panels, there are many considerations that affect the arrival at a detail.   It’s a process that we forge through per job.  As an architect or designer, can you imagine if your potential clients (developers or building owners) called you up and asked to see a typical floor plan from your firm? Sure, there is a general aesthetic and personality to your design process, but each solution is generated by working through several design phases/iterations, and that’s what makes the finished project unique. A single floor plan doesn’t fully do justice to all of the variables that affected that final solution. That’s how much attention and iteration goes into one of our details; they’re like our blueprints.

Here is a wall section detail we generated for a specific project that incorporated backlit onyx panels. The variables:

• Surface type and translucency levels
• Surface thickness
• Light source (method, panel sizes, color temperature, brightness)
• Necessary diffusers
• Structure and fastening method
• Ideal spacing between elements (this can only be derived from physical testing)

As you can see,we develop our details based on the above considerations, and they must be considered holistically to achieve high-quality finished works.

The honest truth? For backlighting architectural panels, you don’t need typicals. Rely on a company's portfolio and expertise to trust that they will arrive at an equally thoughtful solution for your backlit project.

Learn more about our custom solution for the backlit onyx lobby features at the Wells Fargo Center:

Backlit granite bars with the correct lighting controls allow designers to explore the furthest ranges of materiality. Granite is often associated with traditional countertops, but with advanced technology and the correct backlighting system, the flip of a switch can dramatically transform from day to night.

For this backlit granite bartop application in Dubai, GPI developed DURA-Lite™ panels that consist of an ultrathin layer of granite laminated to glass backing. The glass backing provides reinforcement to keep the granite stable during production, shipping, installation, and everyday use.

For this particular application, the design team chose the RGB LED backlighting system for its flexibility. The lighting system is kept off during the morning hours, with the white backlighting illuminating the granite bartops in the evening hours. On more celebratory occasions, the restaurant owners can change the backlighting to a colored arrangement.

These photographs explore the range of aesthetics that thin granite panels with colored backlighting can provide. With adjustments to the illumination, the granite material is rendered in different moods, attracting different groups of people and completely altering the programmatic use of the space.

Thin granite veneer panel (without backlighting)


Granite panel illuminated with flat LED backlighting (cool white light)


Granite panel illuminated with flat LED panel (on red setting)


Granite panel illuminated with flat LED panel (on blue setting)


Granite panel illuminated with flat LED panel (on green setting)

The bottom line? Designing color variation into your lighting schemes can completely redefine space and provide an important selling point to the property owner.  Controls for RGB backlighting systems might add a bit of cost, but the flexibility is priceless.

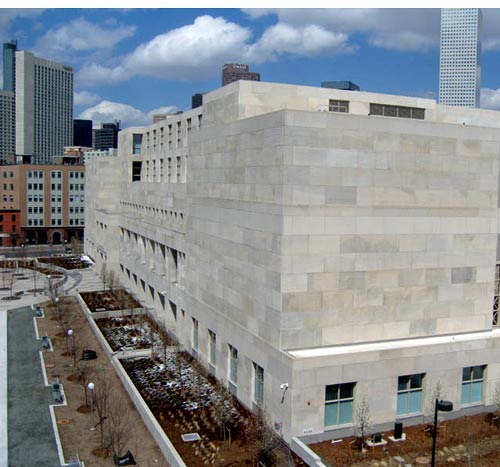

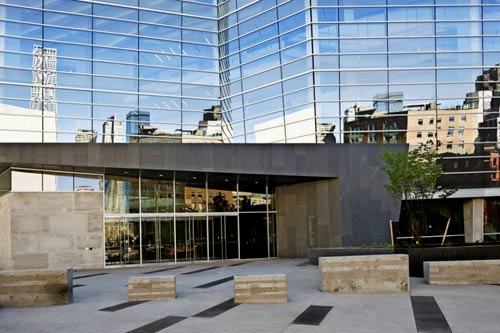

For this recently completed commercial courthouse project in Denver, GPI's involvement ranged from stone selection, detailed shop tickets, quality control in production, and shipping coordination.  Our skilled installation partners at Cleveland Marble Mosaic took the reins on-site to complete the installation with skilled craftsmanship. These stone panels and cladding fit seamlessly into existing site conditions for a classic design statement in natural stone - fitting for a government courthouse.

With attention to detail from design to shop tickets to production to installation, over 230 tons of exterior stone panels were delivered cut-to-size for a smooth installation.

Stone Tickets

• Over 230 tons of natural stone material
• Thousands of stone panels in various shapes/sizes/thicknesses
• Angular, curved, thermal, miters, saw cuts, kerfs, pin holes, varying thicknesses
• Highly customized stone tickets
• Under 1% of pieces were incorrect or didn’t fit on-site

Shipping and Coordination

• Sequenced in 16 containers in conjunction with layout on site and installation schedule
• Packed and shipped with 0% breakage

Architect: Studio Insite

General Contractor: Hensel Phelps Construction Company

Stone Contractor: Cleveland Marble Mosaic Company

Photos courtesy: denverjusticecenter.com and denvergov.org
