Maybe it's time for more late night office sessions, the multitude of windows leads to endless inspiration! Playing with our backlit onyx samples late in the day, a quick glimpse out the window at the dramatic clouds reminds us why we love working with natural stone materials.

Evening view from the GPI Design Westlake office

Much like this sunset, the colors and patterning in natural stone are entirely organic and specific to a certain point in time.  While the composition of the sunset is fleeting, the patterns formed in an onyx panel are stamped for eternity; a tangible piece of nature turned into a building material. Both the sunset and the onyx are gorgeous because of the components that constitute their forms and patterns, but lighting brings a whole new layer of warmth and dimension to their perception.

12" x 20" sample of backlit Iranian Blue Onyx Pin It

Admittedly, the thought of placing color gel filters over the windows to tint the sky to our exact liking DID cross our minds. (And what if that cloud moved left just a little bit? Ooh, I would love to see more gold just above the horizon.)  We constantly remind ourselves to run with the randomness of nature. Sometimes you just can't design beauty.

Onyx itself is a luxurious material, and when integrated with the proper backlighting techniques the layers and depth of the stone is further brought to life.  You’re investing money and design time into this natural product, so consider the following tips to properly showcase its natural beauty:

1. Choose a stone that has significant visible veining or texture- the natural color and movement will distinguish the high-end natural stone finish from a man-made alternative.

(above image: Tower Oaks Honey Onyx Feature Wall by GPI Design)

2. White onyx is the least forgiving stone for backlighting applications.  Backlit white onyx is prone to hot and cold spots, so allow more space between the stone and the lighting source or consider using diffusion scrims and filters.

(above image: Maker's Mark backlit onyx bar in Indianapolis by GPI Design)

3. When designing with standard dimensional stone panels, ensure that the light source is bright enough to transfer through the stone surface.

4. When designing with glass-backed stone panels, ensure that the glass is non-leaded.  Leaded glass casts a greenish tint and can alter the color of the natural stone surface.

5. When designing a ceiling or wall layout of backlit onyx panels, consider the book matching composition and how the seams will interact with the natural veining of the stone. (Read our previous blog post on book matching natural stone for more details.)

(above image: Signature Place Lobby Feature Walls by GPI Design)

Designing with light and natural stone comes with its own set of limitations, so take time to mock-up the stone and light assemblies or choose a company with experience in integrating the two products.

While we use modern designs, materials, and techniques to entice your guests, today we would like to pay tribute to some of the ancient originators of stone design and lighting.

Cave dwellings accounted for some of the earliest human settlements and many communities around the world today still dig into rock to find living space. Few though, can rival the breadth, depth, and beauty of Cappadocia. This region of central Turkey, a twelve-hour bus ride from Istanbul, finds itself at the cross-roads of Europe and Asia. Conquered by Hittites, Persians, Alexander the Great, Romans, Byzantines, Arabs, and Turks, the inhabitants often sought safety in the numerous and interesting geological formations that dot the landscape. Composed of soft, "living" rock, these formations have housed living spaces, temples, churches, mosques, markets, store-house, and fortifications with influences from the myriad of cultures that came to call this area home. The town of Ortahisar, perhaps the most well-known and photographed, has an ancient Roman fortress at the pinnacle of a rock mound that dominates the surrounding area.

Fairy chimneys, called “hoodoos” by geologists, account for the most interesting. With hard rock protecting softer rock below, they have been eroded by wind to form remarkable spires into which people have carved "pigeon-caves." These caves look like pigeon coops when seen from a distance and allow for secure multi-level living areas. These formations can be found throughout the world, like Bryce Canyon National Park in Utah, but few areas can rival the Göreme National Park of Cappadocia in variety and number.

Besides carving into the sides of mountains, canyons, and fairy chimneys, many communities dug vertically down into the ground. Many of the early Christian converts fleeing Roman persecution found themselves sheltered in underground havens with hidden, gated openings and rarely saw the surface. Subsequently these underground cities gained elaborate and well lit lay-outs, some with up to eleven levels like the town of Derinkuyu, complete with homes, retail areas, places of worship, meeting areas, and light-wells. These light-wells brought sunshine and illumination to those underground without the soot and smoke that accompany torches.

Today, with invaders being non-existent, Cappadocia has a thriving tourist industry which emphasizes its natural splendor and diverse cultural history. Balloon-rides, hikes, or simply sitting on a patio all offer the chance to experience the magnificence that surrounds. Contemporary hotels have continued the tradition of cutting into living rock, providing the experience of cave dwelling without sacrificing modern amenities. Well lit rooms lead to amazing restaurants or breath-taking spas and Turkish-baths. A low-population density negates the chance of encountered numbing crowds and the friendly inhabitants promise to make this a trip to remember.

Just don't go trying to dig into your backyard when you get home in an attempt to emulate this amazing region!

Image credits: Allbestwallpapers, HotelsWorld, Derek Blair Blogspot, Wild Junket

Ouch. I feel like I’m backstabbing my trusted old friend, the natural stone panel. Lately we’ve seen a surge of interest in faux stone products, particularly for backlighting applications, and have found ourselves recommending these products for certain instances. There are some high-quality acrylics, poured resins, and co-polyester materials that have made advancements in the last five years and become promising contenders to the natural stone panel.

You’ve specified an exotic natural onyx, the client has fallen in love with it, and now after budgeting exercises, you need value alternatives that still come close to the original design intent.  The inherent beauty of onyx panels instantly makes them the focal points of space, so it’s not always wise to cut the budget in these areas. There ARE certain instances in which man-made faux stone panels will maintain your design intent, meet the budget, and please the client, but decisions should be made with discrimination.

When is a man-made onyx material a decent architectural solution? Here is our criteria for selectively determining when to use man-made faux stone panels versus the real thing:

1. Complex Geometries

Let’s face it – even with the most advanced processes, natural stone panels just doesn’t like to be coerced into complex geometries (particularly bent and curved shapes). Man made stone materials offer real flexibility in creating thermoformed and custom shapes. In addition, mitered edges are easier to fabricate and control quality.

2. Overhead applications

In terms of offering dramatic weight reduction, faux stone panels offer real benefit to designers and greatly reduce structural requirements. Plus if the stone will be viewed from a distance and out of reach from physical contact, it’s likely that the occupants will never know the difference.

3. Cost

Based on our experience, faux stone panels are typically about 50% less expensive than traditional glass-backed natural stone.  The lightweight nature will reduce the amount of structural steel necessary to support the faux stone in a feature wall or ceiling application.

4. Control/ Predictability

Especially when you’re in a time crunch and looking for a quick material solution to add to your specs, mother nature doesn’t always provide natural stone material in the exact way you have envisioned it, packaged neatly for insertion into architectural drawing sets. For optimal control and predictability, man-made materials offer the advantage.

5. Time

This piggy-backs onto #4 above.  With an easier specification process, man-made translucent stone panels greatly simplify the decision-making process. Existing product collections set clear parameters on available surface styles and options. While the manufacturing lead times for faux and natural stone panels are roughly the same, the sampling and specification process for acrylic or resin stone panels is usually quicker.

--> Now of course, there’s always a distinct set of parameters in which materials are best suited, and I must do justice to GPI's long history in the natural stone industry.  So stay tuned for when we explore the advantages of using natural stone panels (which, if nothing else, will ease my guilt for writing this blog post!).

Expand your design palette with imaginative interior feature wall products. Stone, wood, and light are three basic elements of nature. Layer them into an integrated assembly, and the visual effect is stunning.

A sleek alternative to backlit onyx mosaics, these backlit stone and wood screen panels create extravagant patterns for an interior feature walls and ceilings.  Combining illumination, translucency and pattern, the layered panels illuminate without evidence of structural shadows or untidy grout joints.

Above: Flat-Lite™ LED Light Panel

Flat-Lite™ LED Light Panel + DURA-Lite™ Translucent Glass-Backed Stone

Custom laser cut wood screens (available in any custom pattern or lettering)

Flat-Lite™ + DURA-Lite™ + Custom Wood Screen

In an interplay between organic veins and geometric repetition, the wood screens frame the natural movement of the onyx. Backlit illumination increases the contrast between the surface materials, providing an intriguing focal point for commercial and hospitality spaces.

In studying our website metrics that indicate which keywords our visitors are searching for, it’s mind-boggling how many designers are searching for answers to detailing backlit panels. And while we love to stock our website full of useful information that makes it easy for busy designers to quickly understand and specify our systems, typical details can sometimes actually hurt the process.

When backlighting architectural panels, there are many considerations that affect the arrival at a detail.   It’s a process that we forge through per job.  As an architect or designer, can you imagine if your potential clients (developers or building owners) called you up and asked to see a typical floor plan from your firm? Sure, there is a general aesthetic and personality to your design process, but each solution is generated by working through several design phases/iterations, and that’s what makes the finished project unique. A single floor plan doesn’t fully do justice to all of the variables that affected that final solution. That’s how much attention and iteration goes into one of our details; they’re like our blueprints.

Here is a wall section detail we generated for a specific project that incorporated backlit onyx panels. The variables:

• Surface type and translucency levels
• Surface thickness
• Light source (method, panel sizes, color temperature, brightness)
• Necessary diffusers
• Structure and fastening method
• Ideal spacing between elements (this can only be derived from physical testing)

As you can see,we develop our details based on the above considerations, and they must be considered holistically to achieve high-quality finished works.

The honest truth? For backlighting architectural panels, you don’t need typicals. Rely on a company's portfolio and expertise to trust that they will arrive at an equally thoughtful solution for your backlit project.

Learn more about our custom solution for the backlit onyx lobby features at the Wells Fargo Center:

Backlit granite bars with the correct lighting controls allow designers to explore the furthest ranges of materiality. Granite is often associated with traditional countertops, but with advanced technology and the correct backlighting system, the flip of a switch can dramatically transform from day to night.

For this backlit granite bartop application in Dubai, GPI developed DURA-Lite™ panels that consist of an ultrathin layer of granite laminated to glass backing. The glass backing provides reinforcement to keep the granite stable during production, shipping, installation, and everyday use.

For this particular application, the design team chose the RGB LED backlighting system for its flexibility. The lighting system is kept off during the morning hours, with the white backlighting illuminating the granite bartops in the evening hours. On more celebratory occasions, the restaurant owners can change the backlighting to a colored arrangement.

These photographs explore the range of aesthetics that thin granite panels with colored backlighting can provide. With adjustments to the illumination, the granite material is rendered in different moods, attracting different groups of people and completely altering the programmatic use of the space.

Thin granite veneer panel (without backlighting)


Granite panel illuminated with flat LED backlighting (cool white light)


Granite panel illuminated with flat LED panel (on red setting)


Granite panel illuminated with flat LED panel (on blue setting)


Granite panel illuminated with flat LED panel (on green setting)

The bottom line? Designing color variation into your lighting schemes can completely redefine space and provide an important selling point to the property owner.  Controls for RGB backlighting systems might add a bit of cost, but the flexibility is priceless.

Designing and specifying backlit onyx panels is a unique process. (Since onyx is a natural stone material, you can’t just call up Mother Nature and ask her to send samples of her latest collection.) This post outlines the three key items that you need to communicate in order for your backlit onyx design visions to become reality.  Here we outline the necessary steps for designers to ensure their conceptual intent is properly translated:

1. Communicate the shade, coloration, and veining characteristics of the translucent onyx surface.

• Use photographs to communicate your preferences.  As onyx is a highly exotic material, clearly establish color baselines and veining parameters with the use of targeted images. Typically, verbal and written descriptions will not sufficiently describe the nuances found across an onyx slab.
• In most cases, you will need to specify glass-backed translucent stone if even and continuous backlighting is desired. (Not all natural stone slabs transmit light, but in the process of slicing thinly and laminating to glass, nearly any type of stone can become transparent - even granite.)

2. Identify the backlighting method that suits your design aesthetic.

• Even illumination across entire face of onyx panel?
• Gradient wash that fades from one edge to another?
• Colored RGB lighting?
• Dimming capability? Would you/your client like the control and automation that comes with tying the LED backlighting into a central lighting control system?

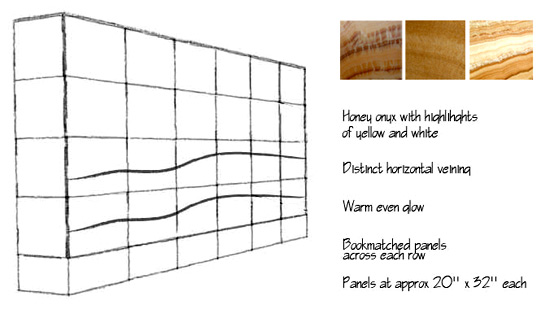

3. Provide drawings of the application that indicate panel sizes and book-matched joints.

• If the backlit onyx panels must match surrounding stone or millwork finishes, make sure your backlit natural stone supplier has the exact panel sizes so that they can recommend stones that work within your module.
• If your exact panel sizes are flexible, that could open up more possibilities in the stone selection. (Remember, onyx is a natural material so it is not available in standard sheet sizes like man-made building materials.)
• Use standard drawing convention to indicate the bookmatching arrangement in your backlit onyx composition.

If you're working with a backlit onyx supplier, as a designer you really just need to communicate numbers 1 through 3 above.

Proactive companies will act as part of your team to guide you through the subsequent steps: lighting design, mock-ups, detailing, structural engineering, quality control in production, and construction itself.

A sampling of the backlit onyx slabs we displayed at Neocon in Chicago this past June- if only we had a dime for every time we heard "is that real stone?". 100% natural!

We've enjoyed sharing our image library with you. Here is a recap of the main color ranges we explored:

1. Green onyx panels

2. Red onyx panels

3. Honey onyx panels

4. White onyx panels

For everything in between, there's always alternative stone types (such as blue marble), color filters, and man-made agglomerates to achieve the exact hue you're searching for!
